Basic Course in Special Effects and Game Programming in Java™

by Aníbal Wainstein

Chapter 3
Threads and animation

Last updated 1999-05-24

• 3.0 The theory behind program threads
• 3.0.1 An applet's start() and stop() methods (the Runnable interface)
• 3.0.2 The run() method
• 3.0.3 Exceptions, static classes and how to put a thread to sleep
• 3.1 Other examples with showStatus()
• 3.1.1 Your first scroller (statusscroller)
• 3.1.2 A computer terminal in your status window (statusdatatext)
• 3.1.3 Falling text (fallingtext)
• 3.2 Simpler graphics animation
• 3.2.1 Thread synchronization
• 3.2.2 How to stop gray flimmering in an applet by overwriting the update() method
• 3.2.3 A graphical text scroller

3.0 The theory behind program threads

Multiple program threads were introduced to PC programming with the release of Windows 95. Operating systems such as UNIX have had this for a long time. A thread works like a "little worker" working with the program code. If you have several programs running in your system, then there is at least one thread for each program. Some programs may have several threads, for instance a web browser that supports Java. To be able to have animated Java applets we are forced to use two threads. First there is the program or main thread, which is the Java Virtual Machines own thread. This is used for the so-called event system, which handles user input such as mouse pointer movements and keyboard events. In the last chapter we had only worked with the main thread. The problem with animations is that they often requires that you have a thread that is constantly working with the animation code. We cannot use the main thread because then the applet's other functions will stop working, the applet hangs. A program that hangs, usually does that because the main thread gets stuck in an program loop and cannot get free, or that it collides with another thread and stops. Assume that two web designers are working with a homepage. If they do not decide who is going to do what, then they will probably end up writing each other work. This leads to agression, the cooperation breaks down and with that also the project. In the same way you must be careful when using threads.

3.0.1 An applet's start() and stop() methods (The Runnable interface)

Applets have no natural support for threads. You add thread support by adding the Runnable interface :

import java.applet.*;

import java.awt.*;

public class threadtest extends Applet implements Runnable {

}

In our empty threadtest applet we have added "implements Runnable". With the declaration "implements" you can add several new functions to a class. It is used to increase the class' abilities. "Runnable" will give access to three new methods: start(), stop() and run(). In an applet that supports threads the methods init() and paint() are first called by the Java Virtual Machine's main thread, the third method called by this thread is the start() method.
In the start() method you can initialize and start your animation thread.

public Thread programthread = null;

public void start()

{

    if (animationthread == null)

    {

         animationthread = new Thread(this,"animationthread");

         animationthread.start();

    }

}

public void stop()

{

    if ((animationthread != null) && animationthread.isAlive())

        animationthread.stop();

    animationthread = null;

}

You will probably always just cut and paste these two methods into your programs in the future. They are general methods that all the special effects or game applets have.

3.0.2 The run() method

In contrast to the start() and stop() methods, the run() method will always be different from applet to applet. This methods is always called by your self-created thread. This means that you have a thread that works with the applets other methods (the main thread) and a thread that works with the run() method (your own thread that you initialize in the start() method). By "holding" the thread in the run() method with a loop, you can exploit it to do work that will not hang the JVM:

public void run()

{

    while (true)

    {



    }

}

import java.applet.*;

import java.awt.*;



public class threadtest extends Applet implements Runnable {



public Thread animationthread = null;



public void start()

{

    if (animationthread == null)

    {

         animationthread = new Thread(this,"animationthread");

         animationthread.start();

    }

}



public void stop()

{

    if ((animationthread != null) && animationthread.isAlive())

        animationthread.stop();

    animationthread = null;

}



public void run()

{

    while (true)

    {

        showStatus("Hello Sweden!");

    }

}

}

3.0.3 Exceptions, static classes and how to put a thread to sleep

You may have notice that the applet in the last section was very processor intensive. Maybe it is not necessary to update "Hello Sweden!" every millisecond, it is enough doing that once per second or less. We must now put a delay in the run() method's loop. With the method sleep(), which exist in the Thread class, we can get the thread to "sleep" a number of milliseconds. This method is a so-called static method. A method of this type may be called without having to create an instance of the class (in other words, without having to create an object, based on that class). So you can simply write:

Thread.sleep(1000);

Now the thread will sleep for exactly 1000 milliseconds (which is exactly one second). Static classes can be useful sometimes if you happen to have a very useful function in a class that you use a lot. Then it can be a good idea top make the function static and to be able to save some memory by not having to allocate memory for a new object. The memory that is required for a static method is allocated first when the Java VM encounters the class where the static method is. All the future objects created and based on that class will always use the same memory cell where the static method exist.

There is something that you must consider. Static methods cannot work with non-static variables in the same class. However, this is not true if the variables are also static. Why, do you ask? Because you have not allocated memory for these variables (created a new object). They simply do not exist when the static function is called! The effect of using static variables is that if you have several objects based on the same class, then they will all share the same variable. That means that if a static variable is manipulated in one object then the content of the other statical variables in the other objects are also changed.

Now you probably think that you can use this method freely and put it in your loop. No, I am sorry, we are not quite there yet. The problem with the sleep() method is that it throws an exception that you must catch. Exceptions are used in Java by methods to tell to the class calling them that something went wrong. In this case another thread may interrupt the sleeping process. You must know what happened and therefore the function throws an exception. This is of more bother than use, because if you do not catch the exception, then the applet is stopped, or as in some cases, the compiler will simply not accept it. First, you place the method in a try-loop and then you catch its exception in a catch statement:

try

{

    Thread.sleep(1000);

}

catch (InterruptedException e)

{

    System.out.println("Something interrupted the sleep() method")

}

The catch loop requires an argument which must be an exception class. The interruption class is named InterruptedException and it is thrown by sleep(). There are many types of exceptions, and all are subclasses to the Exception class. Other well known exceptions are NullPointerException (appears when you have tried to use a null reference), ArrayIndexOutOfBoundsException (appears when you have specified a negative or too high index on an array) and IOException (an error occurred when reading a file).
To make our "effect" more interesting, we remake the run() method in the last section:

public void run()

{

    while (true)

    {

        showStatus("Long");

        try {Thread.sleep(1000);}

        catch(InterruptedException e) {}

        showStatus("Live");

        try {Thread.sleep(1000);}

        catch(InterruptedException e) {}

        showStatus("Java!");

        try {Thread.sleep(1000);}

        catch(InterruptedException e) {}

    }

}

Click here and you will see.

Now you will also notice that your computer is not working so hard compared with the other example.

3.1 Other examples with showStatus()

Status window effects are often used among web designers today. Thanks to our new knowledge in threads, we can begin making some status window animations.

3.1.1 Your first scroller (statusscroller)

I remember that the first applet I programmed was an applet called URLScroll. It was one of the most common effects at that time, and they usually were a text message that moved from right to left or upwards. We reviewed in section 1.4.1 how to get a substring from a larger string. Start by opening the old threadtest.java file and save a copy under another name ("statusscroller" for instance). Now we add an init() method where the message will be initialized:

public String message;



public void init()

{

    message="                              ";
    message+="                              ";
    message+="                              ";
    message+="                              ";
    message+="Anibal Wainstein's Basic Course ";
    message+="in Special Effects and Game development in Java(TM)";}

message="message 1 ";

message+="message 2";

message="message 1 " + "message 2";

public void run()

{

    while (true)

    {

        int L=message.length();

        for (int i=0; i<L; i++)

        {

            showStatus(message.substring(i,L));

            try {Thread.sleep(100);}

            catch(InterruptedException e) {}

        }

    }

}

Computer terminals in the beginning of the 80's were very sluggish and had a special way to write out sentences. Here, we shall try to simulate that effect, but on the status window and with only one sentence.

Do a copy of the previous Java file and rewrite the init() method to the following code:

public void init()

{

    message="Preparing to launch....";

    message+="6... 5... 4... 3... 2... 1... 0...";

}

public void run()

{

    int L=message.length();

    boolean showcursor=false;



    //Write the message step by step with
    //the blinking cursor.

    for (int i=0; i<L; i++)

    {

        if (showcursor)

            showStatus(message.substring(0,i)+"_");

        else showStatus(message.substring(0,i));

        showcursor=!showcursor;

        try {Thread.sleep(100);}

        catch(InterruptedException e) {}

    }

    //The message is written. Animate the cursor
    //(keep it blinking).

    while (true)

    {

        if (showcursor) showStatus(message+"_");

        else showStatus(message);

        showcursor=!showcursor;

        try {Thread.sleep(100);}

        catch(InterruptedException e) {}

    }

}

showcursor=!showcursor;

Click here to see statusdatatext in action.

Please note, that if you want to speed up the effects in this example and in the example in the last section, then decrease the value in the sleep() method. You will then have a more processor intensive applet. In more complicated effects that demands many calculations this could cause big problems, which we will give example of in later chapters.

3.1.3 Falling text (fallingtext)

Another interesting effect is the falling test effect. The word "falling" is a bit missleading, the text moves from the right and builds up the sentence or message letter by letter. Now, do a copy of the applet code in the last section. We begin by initializing the message in the init() method:

public void init()

{

    message="Falling text is a cool effect!";

}

public void run()

{

    int L=message.length();



    //Create a string with a blankspace for the animation.

    String blankspace="                                 ";

    blankspace=blankspace+blankspace+blankspace;



    //Set the variable "mL" to the blankspace's length.

    int mL=blankspace.length();



    //The first loop will count up to the message's

    //length minus one.

    for (int i=0; i<L-1; i++)

    {

        //The second loop will count up to the blankspace's

        //length with 8 step's at the time in order

        //to increase speed.

        for (int j=0; j<mL; j+=8)

        {

            //Show an increasing part of the message

            //with a decreasing part of the blankspace

            //and the last letter in the message string.

            showStatus(message.substring(0,i)

                +blankspace.substring(j)

                +message.substring(i,i+1));

            try {Thread.sleep(50);}

            catch(InterruptedException e) {}

        }

    }

    //The last loop will see to that the

    //message is not overwritten by other status

    //messages.

    while(true)

    {

        showStatus(message);

        try {Thread.sleep(100);}

        catch(InterruptedException e) {}

    }

}

This effect looks much more complicated than the ones we have done until now. What you may be frowning towards are the nested FOR loops. The first loop is used to build up the sentence. For every new letter that is added in the sentence you must animate the following letter. This is what the inner loop is used for. There you use the variable "j" to crop down the blankspace area between the sentence and the animated falling letter. Please note that to crop the blankspace area we have used an overloaded substring() method, which takes a substring from the j-position to the end of the string. When the animation is finished, then we make sure we hold the thread and keep it working in a loop. This loop will be writing out the finished message in the status window, so that it is not overwritten by other browser messages. The best way to know how the effect looks like, is to see it in work by clicking here.

3.2 Simpler graphics animation

To this point, we have only worked with animations on status windows. Personally I think that these types of effects are irritating when I encounter them on the Internet. Now, we will look at graphics animation, which are the greatest strength with Java applets and what makes them so superior to other special effects technologies such as GIF89 animations, DHTML or JavaScript.

3.2.1 Thread synchronization

As I described to your in section 3.0, you must be very careful when using threads. We will look at an example of this now.
We have so far used the paint() method to draw on the applet screen. This method is automatically called by the program thread (the main thread) when the screen needs to be updated. Now that we have two threads and we will begin animating the applet screen, we must call the paint() method a certain number of times per second. The probability is large that the main thread and our self created thread collides with each other. To avoid this, we write the word synchronized after "public" in our overwritten paint() method:

public synchronized void paint(Graphics g)

{

}

3.2.2 How to stop gray flimmering in an applet by overwriting the update() method

If we are going to make animations with the paint() method, then we must also overwrite the update() method. This method is sometimes called by the web browser before updating the applet screen, in order to clear it (using gray color). This leads to gray flimmering when you animate with the paint() method. Therefore it must be put out of action with the following lines:

public synchronized void update(Graphics g)

{

    paint(g);

}

3.2.3 A graphical text scroller

We will now make an applet that is similar than the one we made in section 3.1.1, but now the text will be scrolled in the applet screen.
Make a copy of the statusscroller.java file from section 3.1.1 and change the methods init() and run() to the following content:

public void init()

{

    message="Basic Course in Special Effects and ";
    message+="Game Development in Java(TM)";

}



public void run()

{

    while (true)

    {

        update(getGraphics());

        try {Thread.sleep(50);}

        catch(InterruptedException e) {}

    }

}

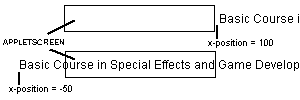

public int x=100;



public synchronized void paint(Graphics g)

{

    //Paint the screen black.

    g.setColor(Color.black);

    g.fillRect(0,0,100,20);



    //Draw the message using white paint starting

    //from position "x".

    g.setColor(Color.white);

    g.drawString(meddelande,x,12);



    //Check that the "x" position for the message

    //is not less than x=-400. If it is, then

    //set "x" to the position 100 (this will make the

    //text invisible).

    if (x<-400) x=100;



    //Decrease "x" with 1 so that the text moves

    //to the left.

    x--;

}

Please note that we have added the declaration of the new applet variable "x", over the declaration of "animationthread" and "message", which already existed in the code from the old example. This variable will store the text horizontal position (x-position), even after the paint() method has been called. This position will begin with 100 and end with -400. Because the applet screen being only 100 pixels wide, the text will not be visible at the beginning, but it will be moving slowly to the left until it disappears from sight. The variable "x" will then have the value -400 pixels and then it is time to start over again. This is what the "if" statement is used for.

You will probably notice that the text is flimmering a bit. In the upcoming chapter 4, we will look at how you can remove this using the well known double buffering technique.
